Flocked Nylon Fiber Nasopharyngeal And Oropharyngeal Swabs Amies Transport Swab

Flocked swabs introduction:

What are Flocked Swabs?

Cleanmo's flocked swabs comprise of a solid molded plastic applicator shaft with a tip that can vary in size and shape. The tip of the applicator is coated with short Nylon fibers that are arranged in a perpendicular fashion. This perpendicular arrangement results from a process called flocking, where the fibers are sprayed onto the tip of the swab, while it is held in an electrostatic field. The process creates a highly absorbent thin layer with an open structure.

Reasons you should pick flocked swabs:

Traditionally, compact fibers such as cotton, polyester, and rayon have been used to create swab tips. The fibers are compressed and shaped into the desired tip type.

These fibers still have many useful applications today. But it's estimated that only 10%–15% of the organisms collected on traditional spun fiber swabs can be recovered from cultures. The nature of spun fiber means entrapment of the specimen.

With particularly small samples, this could mean losing virtually all usable specimen, prohibiting subsequent sample analysis. The construction and shape of the swab are also important as these affect the amount of specimens recovered.

The ideal collection device must have the ability to absorb and release the sample and maintain the viability. This brings us to flocked swabs.

01 ERGONOMIC AND ANATOMIC DESIGN

Unique design improves patient comfort and specimen collection.



02 RAPID ELUTION

Cleanmo's flocked swabs immediately release sample into liquid media. Since there is no inner core to trap sample, recovery is dramatically improved over traditional fiber swabs. Eliminate the need for forceps, gauze swabs, bowls and bottled solutions.



03 QUANTITATIVE

Measurable and consistent uptake and transfer from patient for a quantitative measurement and improved test sensitivity.



04 RECOVER MORE CELLS

Cleanmo's flocked swabs have anatomical designs and a soft brush like texture in order to rapidly and efficiently dislodge cells.



05 CUSTOMIZED SOLUTIONS

Cleanmo's flocked swabs can be treated, coated or activated according to specific customization requirements in terms of enhanced flow dynamics, performance or target analyte.



06 MULTI PLATFORM APPLICATIONS

Cleanmo's flocked swabs are compatible with multiple applications and platforms, such as rapid antigen testing, EIA, molecular-based assays, DFA, cytology testing, forensics, bacteriology and virology culture.



07 SAFE AND CONVENIENT

Molded break point.





Optional Swabstick:



Part No: CM-FS913

The swab must come in contact with the posterior nasopharynx mucosaand be rotated several times over 5-10 seconds to collect sufficient cells.



Technical Details

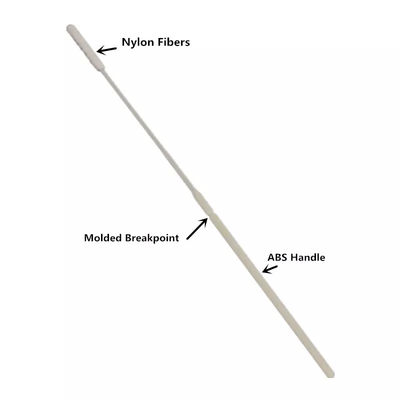

Nylon Fibers Proprietary flock processing maximizes collection and elution.	Molded Break Point The handle has molded break point to prevent contamination.	Polypropylene Handle No adhesive residue, or fiber treatments to interfere with collection.	Frosted tail of swab handle It helps to easily hold the handle.





DRAWING AND SIZE



Molded Break Point





Part NO.	head material	head width	head thickness	head length	handle material	handle width	handle length	total length	packing
CM-FS913	Nylon fiber	2.6mm	3.0mm	20.0mm	ABS	2.5 mm	127.0mm	147.0mm	100 swabs / bag 5000 swabs / ctn







Package

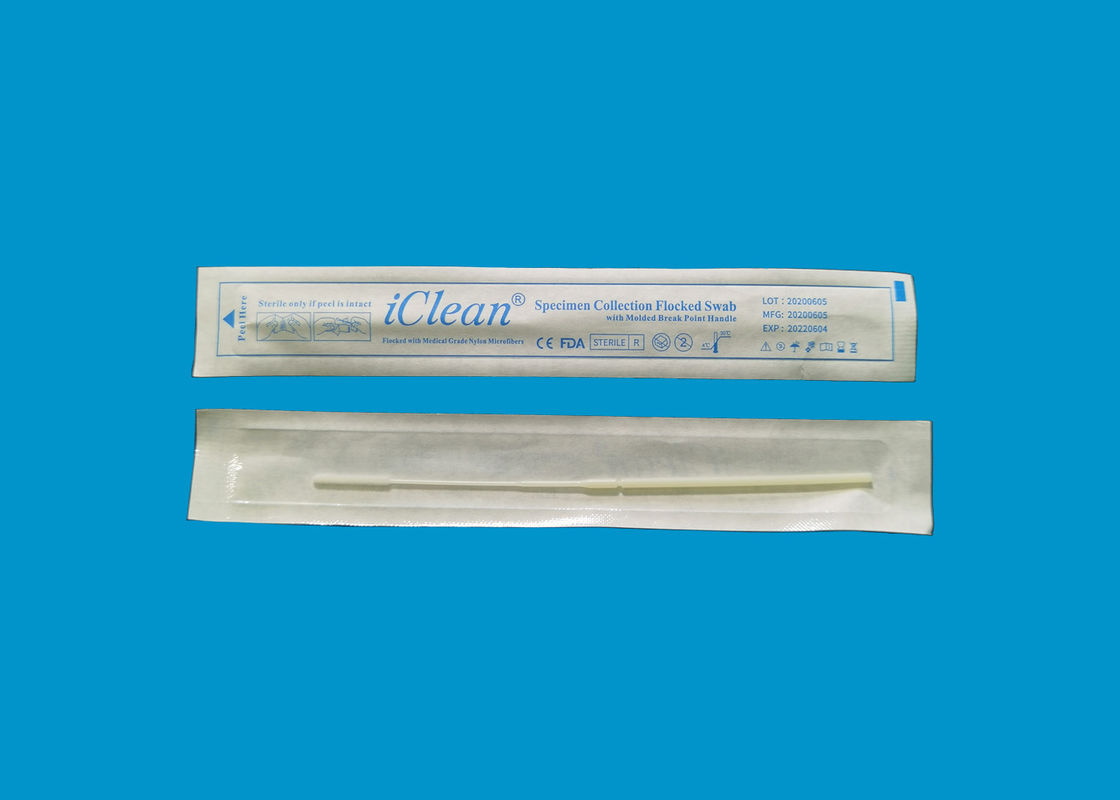

Swab WithTube :1 piece / tube, 50 pcs / bag





Application





Cleanmo Product Application

- Buccal cell collection

- Forensic evidence pick up

- Rapid diagnostic testing
